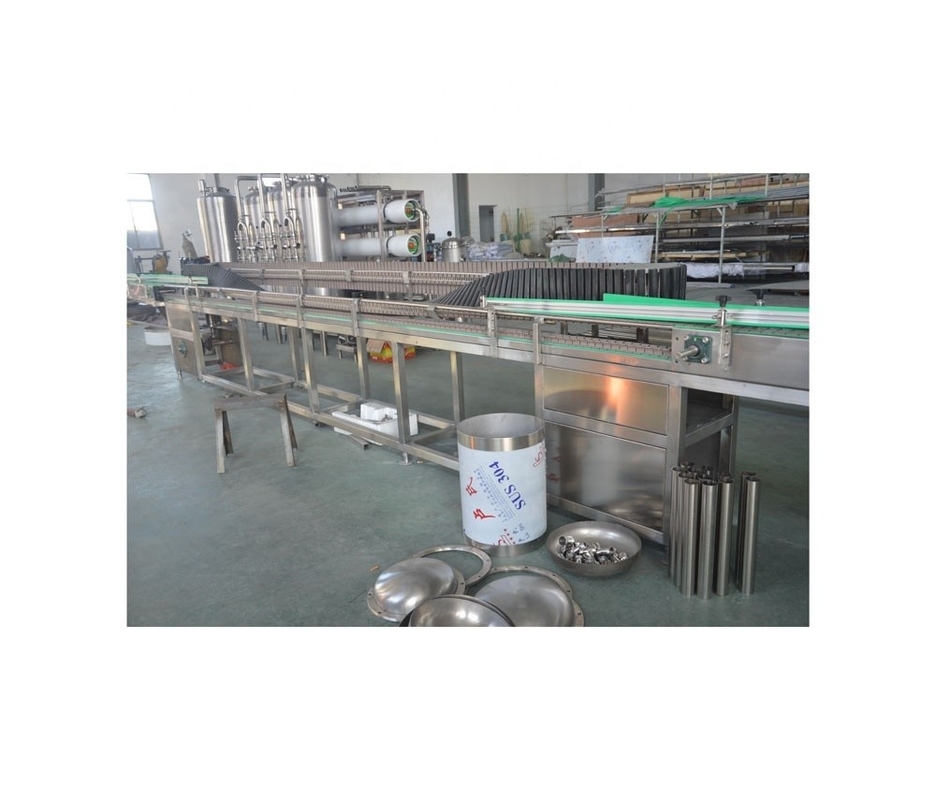

450-600ml Juice Bottle Inverted Sterilizer with Adjustable Speed Customizable Design

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	NC

Detail Information

Place of Origin:

Shanghai, China

Brand Name:

Applicable Industries:

Manufacturing Plant, Food & Beverage Factory, Farms

Showroom Location:

Peru, Morocco, Chile

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Marketing Type:

HOT SALE 204

Warranty Of Core Components:

1 Year

Core Components:

Motor

Condition:

New

Voltage:

110V/220V/380V

Power:

Depends

Weight:

800 KG

Dimension(L*W*H):

Customized

Warranty:

1 Year

Key Selling Points:

Famous Brand PLC

Material:

SUS304

Application:

Tea, Fruit Juice,beverage

Advantage:

Run Steadily

Apply To:

Second Sterilizing In Juice Production Line

Package:

Wooden Case

Suit For:

Filled Bottle Neck And Mouth

Function:

Sterilization

Name:

Bottle Inverter Sterilizer / Bottle Inverter / Inverter Sterilizer

Automatic Or Not:

Fully Automatic

Applicable Volume Of Bottle:

450-600ml

Trading Information

Minimum Order Quantity:

1 set

Price:

$4,800.00/sets 1-1 sets

Product Description

Product Overview

Juice bottle customized adjustable speed inverted sterilizer price

Bottle Inverted Sterilizer Specifications:
The inverted sterilizer for filled bottle neck and mouth is suitable for tea, fruit juice drinks,widely used in juice production
line.
The titling sterilization machine is especially used for second sterilizing in juice processing plant. It is not only sterilizing
the material but the caps. It is the essential sterilizing machine for the hot filling production line.

The Advantage of the Automatic Bottle Inverter:

1.The machine is mainly used to sterilize the interspaces where can’t be reached by high temperature materials in the mouths or capsules of juice or tea bottles whice have been filled and sealed.

2.After the product being filled and capped, the bottle shall be inverted 90°automatically and put flatware by the machine, and the inner of the bottle shall be sterilized by high temperature of the materials and then bottle shall be put vertically and enter into the shower and cooler.

3.The machine runs steadily and reliably and does no harm to the bottle body while the transmission speed is adjusted steplessly.

FEATURES AT A GLANCE

PRODUCT SPECIFICATIONS

Capacity	1-5T/H	Cooling time	10-25 minute speed infinitive adjusting
Sterilization temperature	< 98℃ It can be adjusted according to order	Steam pressure	0.4 Mpa
Sterilizing time	10-35 minute speed infinitive adjusting	Chain belt speed	0.17 -10m/min speed infinitive adjusting
Cooling temperature	20℃	Dimensions	1600x2600x 2000 mm

PRODUCT CONFIGURATION

Suitable For Both Glass And Plastic Bottle

Food Sanitary Material

Conveyor For Easy Transport,Without Damage Bottle
