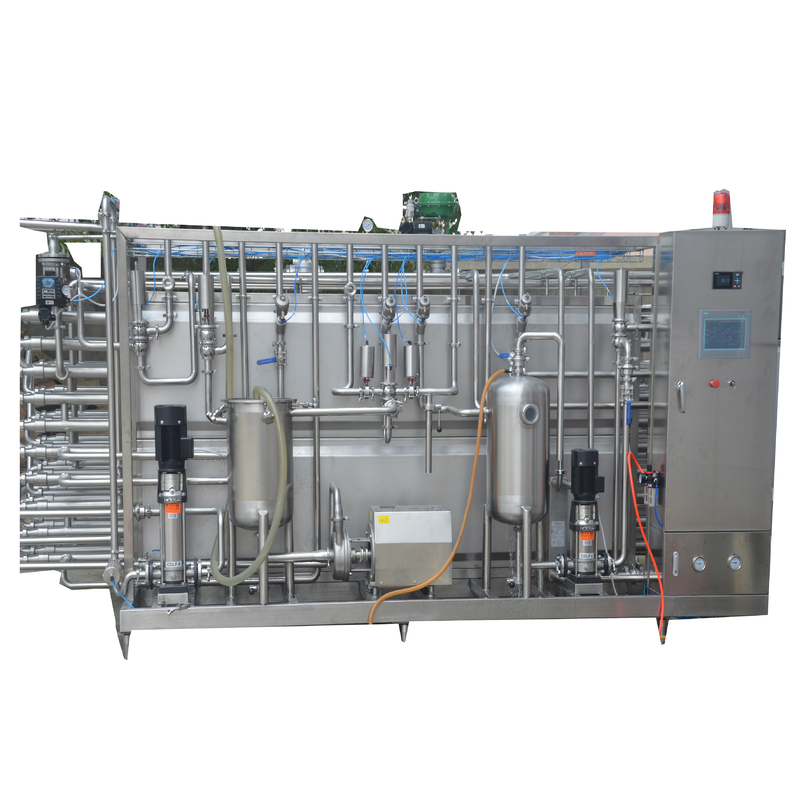

2000L/H Tubular UHT Sterilizer For Liquid Foods And Beverage
OVERVIEW
The tubular UTH sterilizer machine can take hot process on the liquid foods and beverage.The main advantages:
1.High heat effect
2.Mild heating could be achieved as remperature between the medium and the material is small
3.The machine could be controlled and recorded automatically for CIP cleaning,pipe and material sterilization
4.The system for sterilizing temperature,steam pressuure,flow and material flow could be controlled in a precise and reliable way
5.The inside of th material pipe adopts advanced polish technology
6.Fittings of the machine have the advantage of high quality,which is contribute to safety of the system
7.High reliability
![]("D:产品图杀菌机列管式杀菌机IMG_20200310_114247.jpg")
PROCESS PARAMETERS
1)5°C-65°C(homogenizer)-95°C(30s)-138°C(4s)-25°C,for aseptic filling
2)5°C-65°C(homogenizer)-115°C/125°C(5-15s)-88°C-90°C,for hot filling
3)5°C-65°C(homogenizer)-115°C/125°C(5-15s)-75°C-78°C,for middle temperature filling
MAIN TECHNICAL STANDARDS
| MODEL |
TB-UHT-2 |
| PRODUCT CAPACITY(L/H) |
2000 |
| MATERIAL INLET TEMPERATURE |
4-25°C |
| MATERIAL OUTLET TEMPERATURE |
4-30°C |
| STERILIZING TEMPERATURE |
95-143°C |
| WARM KEEPING TIME(S) |
4-15 |
| STEAM PRESSURE |
0.6Mpa |
| STEAM CONSUMPTION |
~160kg/h |
| COMPRESSED AIR PRESSURE |
0.6Mpa |
| SIZE(MM) |
4500*2000*1900 |
| POWER(KW) |
12 |
