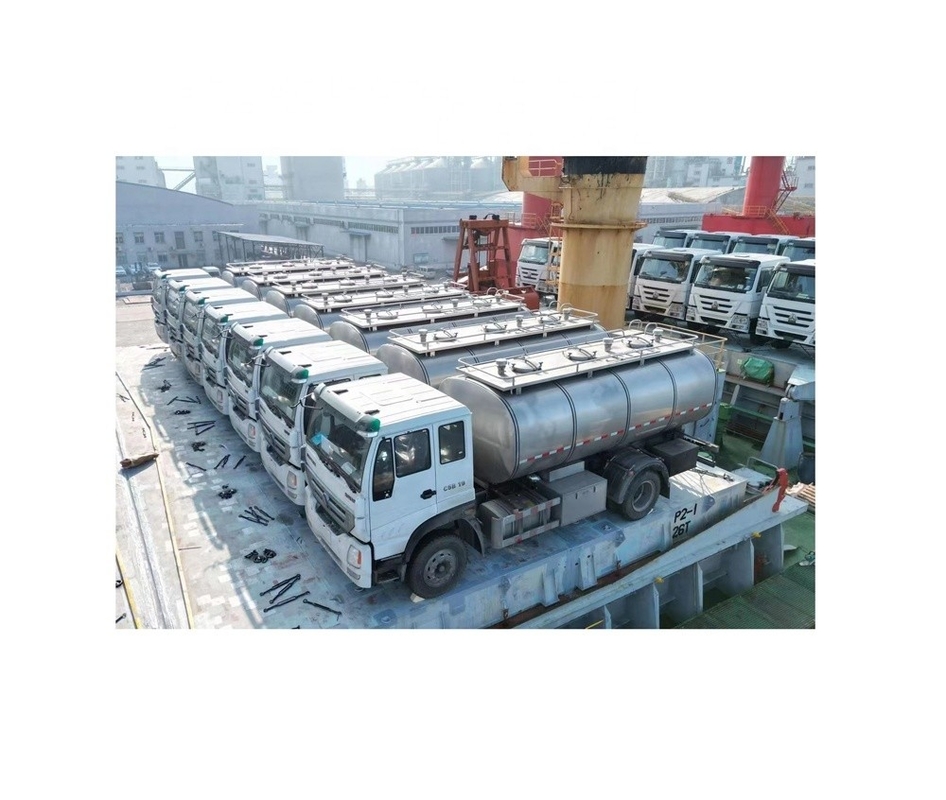

Dairy Factory Use 1T-50T Milk Transport Vehicle

Truck name

DFM transport milk truck

Brand

NC

Chassis model

DFH1250EX

Truck model

YXD5252GNY

Engine

DDI 260 HP

Gearbox

Fast gearbox

Truck size

10380x2500x3280mm

Tank size

7900x2380x1700mm

Tank volume

21m3

Medium/density

Fresh milk/1.03x10 3 kg/m³

Total Weight

25000kg

Truck weight

9555kg

Rated loading weight

16000kg

Number of axes

3

Brake

Air brake

Anti-lock

ABS

Axle load

7000/7000/11000

Air conditioner

With

Fuel type

Diesel

Standard

National III

Tire specifications

Tubeless tyre

Tyre number

8+1

Inner material

Food sanitary SUS304

Insulation layer

PU foaming

Inner material thickness

3mm

Insulation thickness

80-120mm

Vehicle design

The integrated design of the truck and tank meets national requirements, making it safer and more assured;

Chassis advantage

DFM  chassis, DDI 260 horsepower engine, stable driving and high safety

Welding advantages

The welding process of argon arc welding is completed, the welding is smoother, and the welding has no spatter, which is conducive to cleaning.

wash;

Reinforced ring design

The strengthening ring design process is used outside the inner tank to increase the load-bearing capacity and service life of the tank body

Straight walkway

The platform walkway adopts a straight-through walkway, which adopts pre-buried and riveting technology, which makes it safer to walk;

Insulation process

The overall polyurethane foaming is 80-120mm, the temperature change within 24 hours is ≤1-2℃;

Polishing process

Grind the weld seam inside the tank body through the thousand impeller three times to make the inside of the tank body smooth and without sharp angles;

Manhole cover

Mechanical food grade stainless steel manhole cover

Breath valve

Our company independently developed two-way self-adjusting tank breathing valve

Milk bucket design

The use of milk hopper design reduces the residual rate of unloading milk from the tank and improves the speed of unloading milk;
