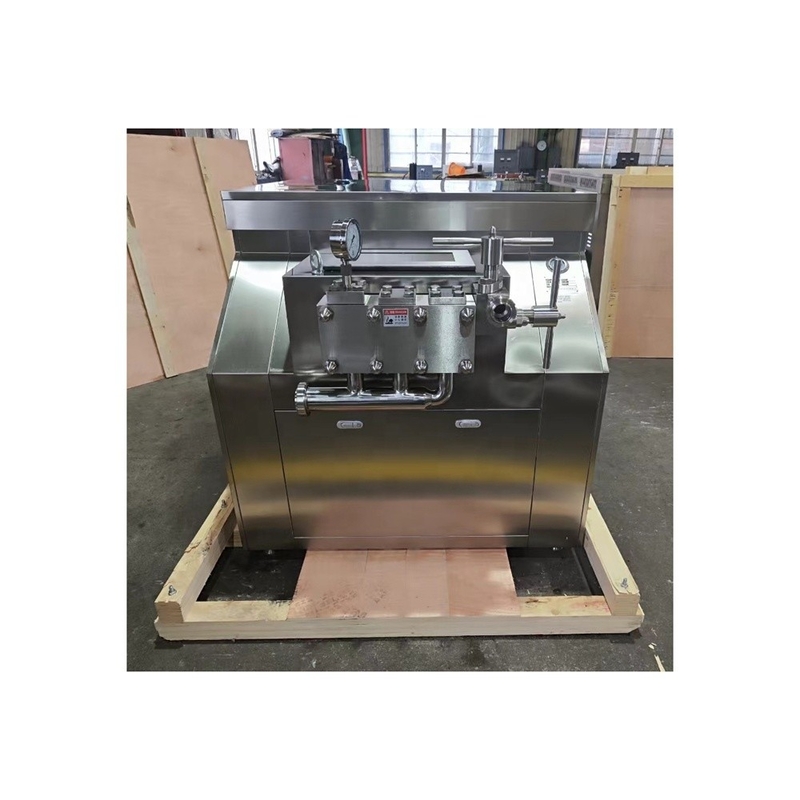

High Shear Ice Cream Homogenizer with ≤80C Material Temperature and 2200 KG Capacity

High Shear Ice Cream Homogenizer with ≤80C Material Temperature and 2200 KG Capacity

Product Details:
Place of Origin: Shanghai, China
Brand Name: NC
Model Number: NC-5/25
Detail Information
Place of Origin:
Shanghai, China
Brand Name:
NC
Model Number:
NC-5/25
Processing:
Homogenizer
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Milk Processing Plant
Showroom Location:
Kenya, Colombia, Romania, Bangladesh
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
HOT SALE
Warranty Of Core Components:
1 Year
Core Components:
Engine, Pump
Condition:
New, Brand New
Processing Types:
Milk
Voltage:
Customized
Power:
37KW
Weight:
2200 KG
Dimension(L*W*H):
1450MM 1150MM 1470MM
Warranty:
1 Year
Capacity:
5T/h
Max Pressure (Mpa):
25
Rated Pressure (Mpa):
20
Viscosity Of Material (Pa.S):
≤0.2
Temperature Of Material (℃):
≤80
Brand:
NC
Usage:
Milk Beverage Processing Line
Location:
Shanghai
Power (KW):
37
Trading Information
Minimum Order Quantity:
1 set
Price:
$9,900.00/sets 1-2 sets
Product Description

High Shear Ice Cream Homogenizer with ≤80C Material Temperature and 2200 KG Capacity 0

High Shear Ice Cream Mixer Ice Cream Homogenizer



NC Homogenizers are the homogenizing and emulsifying devices for liquid fixed material (liquid-liquid or liquid-solid).
This equipment can be used widely in production, research and technical development of food, milk extract, drink, fine chemical, biotechnology and other fields.
Many kinds of material such as milk or bean milk can be homogenized under high pressure to considerably thin the fat balls in the milk liquid, which makes the products be easy to be digested and absorbed, and improve the edibleness.
This equipment can be used in the production of ice cream to improve the thinness and fraction void of liquid material.
It also can be used in the production of emulsion, glue, fruit juice to avoid the or reduce the layering of the material liquid, improve the appearance of the material liquid, which can be more bright, fragrant and delicious.
The material liquid will be dried into powder by spray drying devices after thinning by homogenizers, so that homogenizers are main devices in powder production.

Type NC-5/25
Max Pressure (Mpa) 25
Rated Pressure (Mpa) 20
Rated Flow quantity(L/h)  5000
 Viscosity of Material (Pa.S)  0.2
 Temperature of Material (℃)  80
 Usage  Milk,Beverage,Yogurt,Ice Cream Homogenizing

 High Shear Ice Cream Homogenizer with ≤80C Material Temperature and 2200 KG Capacity 1



High Shear Ice Cream Homogenizer with ≤80C Material Temperature and 2200 KG Capacity 2



High Shear Ice Cream Homogenizer with ≤80C Material Temperature and 2200 KG Capacity 3High Shear Ice Cream Homogenizer with ≤80C Material Temperature and 2200 KG Capacity 4

High Shear Ice Cream Homogenizer with ≤80C Material Temperature and 2200 KG Capacity 5High Shear Ice Cream Homogenizer with ≤80C Material Temperature and 2200 KG Capacity 6







 High Shear Ice Cream Homogenizer with ≤80C Material Temperature and 2200 KG Capacity 7High Shear Ice Cream Homogenizer with ≤80C Material Temperature and 2200 KG Capacity 8

Our company has rich experience to help customers to establish the different production lines for different use, for example. we can arrange technical staff to help customer set up whole production line for mineral water, pure water,cola, milk, juice and vinegar,oil, we are profession for making it. If anyone who is interested in such field wants to buy the whole equipments and machines, pls contact us freely.





We warmly welcome customer to visit our factory at any time,you will see the machine working and running conditon in our factory!
