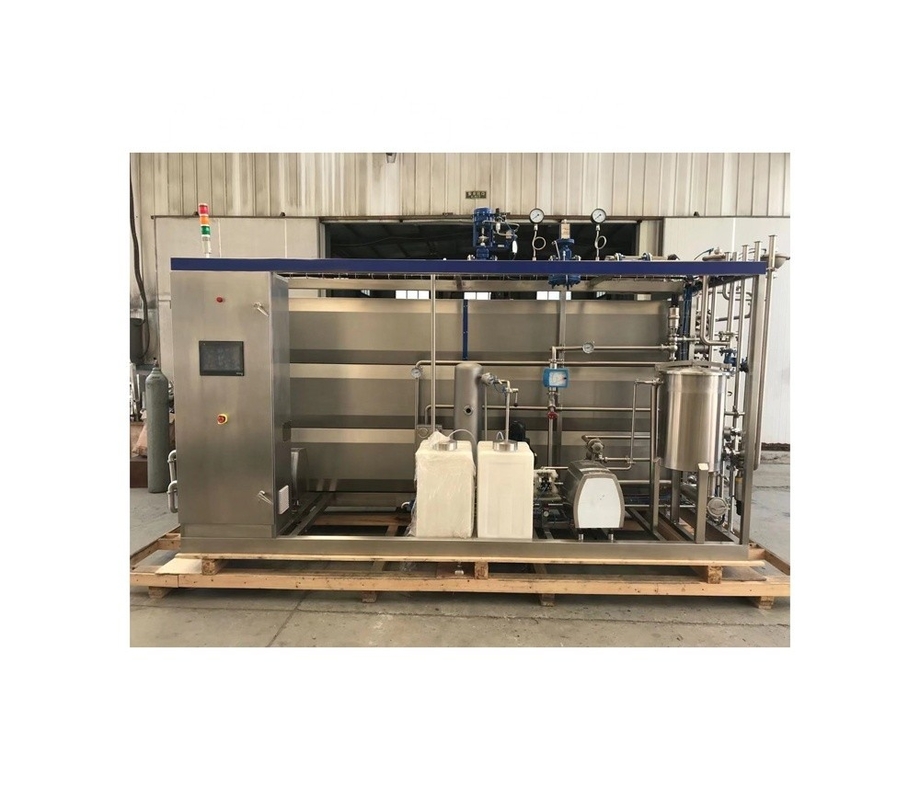

Aseptic Tubular Uht Beverage Sterilizer Fruit Juice Tubular Pasteurizer
The tube(pipe) in tube pasteurizer can take hot process on the liquid foods and beverage.
1.High heat effect,90% of the heat can be recycled after heating the material
2.Temperature ap between the medium and the material is small, so to realize gentally heating, the heating pipe adopts wave pipe, the material and the medium are both in flow
3.It is of high automatic degree, can automatically control and record from CIP cleaning to pipe sterilizing to sterilizing the material.
4.It is of precise and reliable sterilizing temperature control, automatically control the affecting sterilizing temperature system such as steam pressure, flow and material flow.
5.The inside of the material pipe adopts advanced polish technology, pipe joints automatically, pipe design realize complete automatically clean, and the whole process sterilizes, so to ensure the system aseptic.
6.It is of strong system safety, the fittings all adopts reliable product with good capacity, the design values the human, safe equipment, and the steam, hot water and the material all adopts pressure protection methods and alarm system.
7.It is of high reliability system, the main fitting such as material pump, hot water pump, valves, electric elements of controlling system, and the executive elements are all world famous. Tube pasteurizer and yoghurt sterilizer can be designed according to customer requirement. The tube UHT sterilizer of our company is to filling the aseptic package. It fits to various aseptic package, such as: aseptic paper package, aseptic paper, plastic, composite film package, aseptic PE bottle package, especially fit to the production of all kinds of dairy products.
Compared to the sterilizer of other model, it has the following characteristics:
| NO. | Main List | Specifications | Qty | Manufacturer |
| 1 | Machine main body | TG-UHT-75 | 1 | Our company |
| 2 | Balanced barrel | 120L | 1 | Our company |
| 3 | Hot water barrel | 100L | 1 | Our company |
| 4 | Centrifugal pump | 10T/H | 1 | Groundfos |
| 5 | Hot water pump | 3-170 | 1 | Groundfos |
| 6 | Clean pump | L8-80 | 1 | Groundfos |
| 7 | Butterfly valves | 38 | 1 | Spirax Sarco |
| 8 | Pneumatic butterfly valves | 38 | 6 | Spirax Sarco |
| 9 | Ball valve | 38 | 7 | APV |
| 10 | Steam flow control valve | LE33 EP5 DN38 | 1 | Spirax Sarco |
| 11 | Steam Pressure reducing valve | 25P DN38 | 1 | Spirax Sarco |
| 12 | Steam plunger-type valves | DN38 | 1 | Spirax Sarco |
| 13 | Steam trap | | 1 | Spirax Sarco |
| 14 | Pressure gauge | 100 | 2 | Denmark |
| 15 | Two-position four way pneumatic valve | 25 | 1 | Spirax Sarco |
| 16 | Two-position three way pneumatic valve | 25 | 2 | Spirax Sarco |
| 17 | Pneumatic Constant pressure valve | 25 | 1 | Spirax Sarco |
| 18 | Touch screen panel | 10.4” | 1 | Siemens |
| 19 | Programmable logic controller | S7-200 | 1 | Siemens |
| 20 | Electric component | Schneider | 1 | Schneider |
| 21 | Flow meter | | 1 | JUMO |
| 22 | Temperature sensor | Pt100 | 4 | Made in Japan |
| 23 | Liquid level gauge | | 1 | JUMO |
| 24 | diaphragm pump | | 1 | USA |
Our company has rich experience to help customers to establish the different production lines for different use, for example. we can arrange technical staff to help customer set up whole production line for mineral water, pure water,cola, milk, juice and vinegar,oil, we are profession for making it. If anyone who is interested in such field wants to buy the whole equipments and machines, pls contact us freely.
We warmly welcome customer to visit our factory at any time,you will see the machine working and running conditon in our factory!
