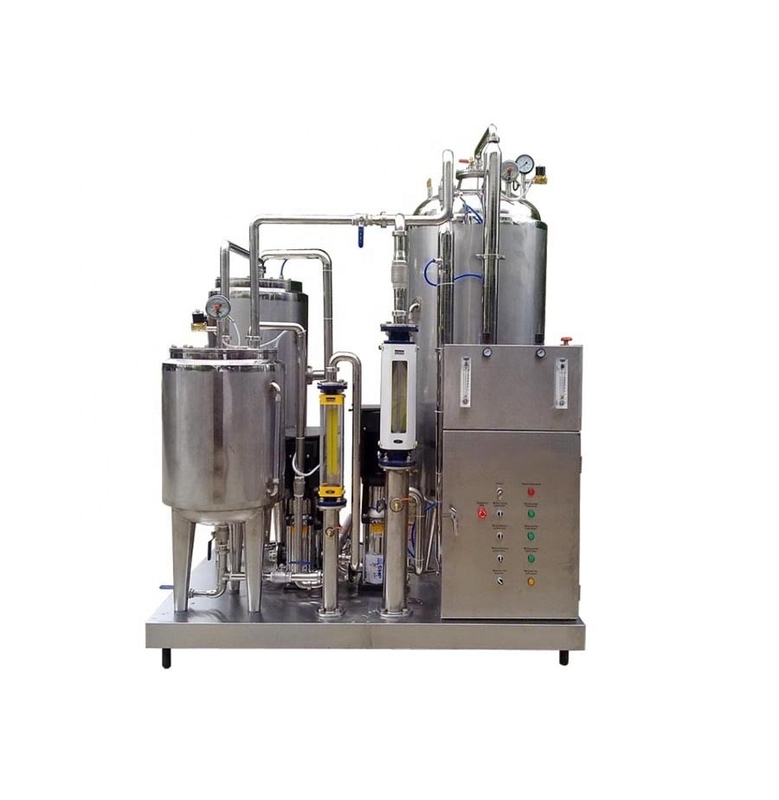

1000L/H Energy Soda Mixer Carbonated Drinks Mixer
NC series drink mixer is designed and made for improving the proportion of water,syrup and carbon dioxide
Carbonated Drink mixer is made with the newest technology introduced from Japan. It is in the leading position comparing with similar products in china. The mixer is mainly suitable for mixing process of all kinds of carbonated soft drink.
It is also used in mixing of slurry drink,fermented drink and other drinks.
Characteristics:
1. It adopts high-quality water pump and famous electrical equipment and other parts to form complete automatic control system.
2. It adopts foreign advanced technology static mixer to lighten water layer, extend carbonizing to assure mixing result and deoxying.
3. The advantages are motor coordinating, beautiful appearance, convenient rinsing, high automatic level.
4. QHS series drink mixer is designed and made for improving the proportion of water, syrup and carbon dioxide.
5. It's osculant the drink material parts are adopt the SUS304 stainless steel.
6. It is suitable for mixing all kinds of drink, such as soda water, fruit juice, cola and drinks.
Beverage Gas Mixer
Main Technical Standards:
| Model | NC-1000 | NC-2000 | NC-3000 | NC-5000 |
| Production | 1000 | 2000 | 3000 | 5000 |
| Syrup and water adjusting rate | 1:3-1:10 | 1:3-1:10 | 1:3-1:10 | 1:3-1:10 |
| Gas amount(Co2:Ho2) | >2.5 | >2.5 | >2.5 | >2.5 |
| Mixing precision(%) | <2 | <2 | <2 | <2 |
| Cooling water inlet temperatu re(0~C) | 0-4 | 0-4 | 0-4 | 0-4 |
| Cooling wate r inlet pressu re(Mpa) | 0.15-0.25 | 0.15-0.25 | 0.15-0.25 | 0.15-0.25 |
| Syrup inlet temperatu re(0C) | 2-8 | 2-8 | 2-8 | 2-8 |
| Syrup inlet pressure(Mpa) | 0.1-0.2 | 0.1-0.2 | 0.1-0.25 | 0.1-0.3 |
| Co2 Inlet pressu re of ca rbon dioxide(Mpa) | 0.7-0.8 | 0.7-0.8 | 0.7-0.82 | 0.7-0.82 |
| Purity of carbon dioxide(%) | 99.9 | 99.9 | 99.9 | 99.9 |
| Working pressure of starage tank(Mpa) | 0.45-0.55 | 0.45-0.55 | 0.45-0.55 | 0.45-0.55 |
| Motor powe r(kw) | 2.2 | 3.5 | 5.9 | 6.3 |
| Size(mm) | 1500*1000*2000 | 1600*1600*2100 | 2150*1700*2300 | 2300*1850*2450 |
| Weight(kg) | 1200 | 1350 | 1500 | 1950 |
Our company has rich experience to help customers to establish the different production lines for different use, for example. we can arrange technical staff to help customer set up whole production line for mineral water, pure water,cola, milk, juice and vinegar,oil, we are profession for making it. If anyone who is interested in such field wants to buy the whole equipments and machines, pls contact us freely.
We warmly welcome customer to visit our factory at any time,you will see the machine working and running conditon in our factory!
